Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz U.FL Antenna for DJI O3/O4 PRO – Choose Option

Flywoo Bipolar, its latest Dual-Band series antenna, is meticulously engineered for the O3 / O4 PRO air unit. This series, featuring two types of antennas - Dual 5.8GHz/2.4GHz and Dual 5.8GHz, is designed to enhance transmission distance while boasting exceptional interference resistance capabilities.

The Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna incorporates cutting-edge dual-band, dual-polarized technology to ensure performance and compatibility that is better than the DJI O3 / O4 PRO air unit.

The Flywoo Bipolar Dual 5.8GHz UFL Antenna stands out as a true dual 5.8G antenna. It's celebrated for its lightweight design and durability, offering stronger signal coverage and stable transmission. The lightest 90mm version weighs in at just 2.9g!

Specifications:

Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna

• Frequency Range: 2400-2500MHz/5700-5900MHz
• Gain: 2.5dBi/3.8dBi - VSWR≤1.6
• Polarization: Linear
• Impedance: 50Ω
• Connector: 2x U.FL (2x IPEX1)
• Cable: RF1.13
• Weight: 5.3g

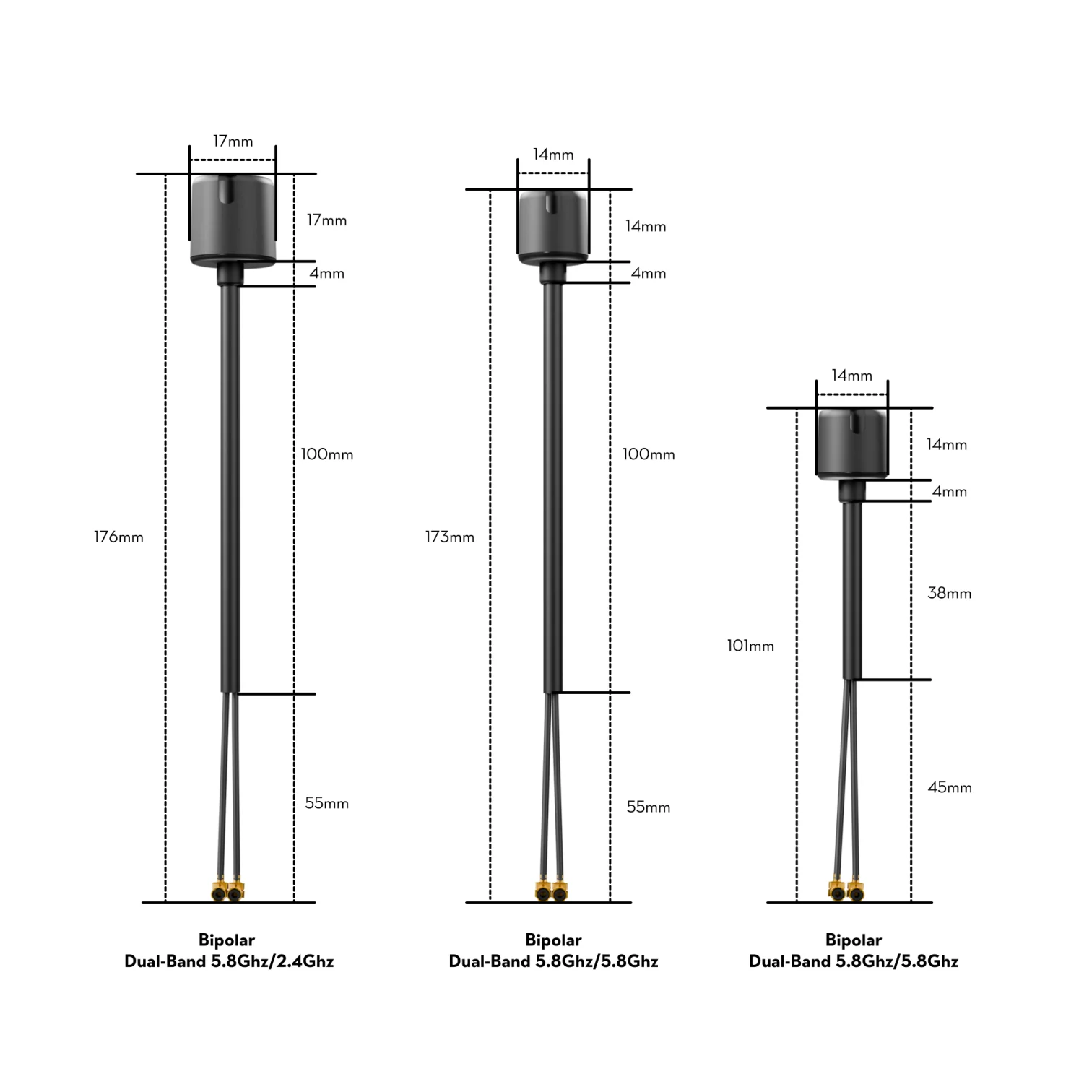

• Size: Φ16x17mm

Flywoo Bipolar Dual 5.8GHz UFL Antenna

• Frequency Range: Dual 5700-5900MHz
• Gain: Dual 2.8dBi
• VSWR≤1.6
• Polarization: Linear
• Impedance: 50Ω
• Connector: 2x U.FL (2x IPEX1)
• Cable: RF1.13
• Weight: 2.9g
• Size: Φ14x14mm
