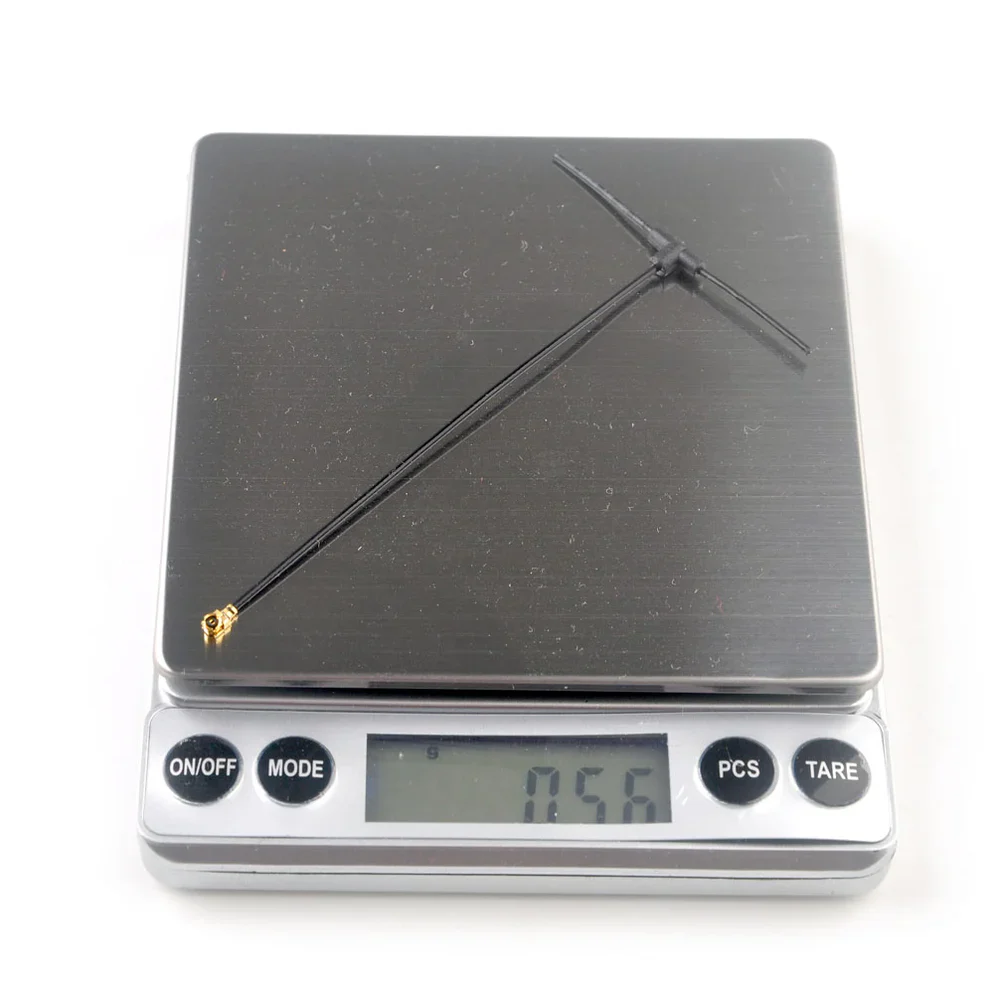

-70%Happymodel 2.4GHz Omnidirectional Antenna for ELRS – 90mm—
$1.99
$0.60The Story
Specifications:
- Frequency (MHz): 2400.0
- Efficiency (dBi): -0.89
- Gain (dBi): 2.23
- Efficiency (%): 81.46
- Directivity (dB): 5.12
- Peak Gain Position (Theta): 180.00
- Peak Gain Position (Phi): 330.00
- Efficiency ThetaPol (%) : 20.90
- Efficiency PhiPol (%) : 60.56
- Upper Hem. Efficiency (%) : 39.93
- Lower Hem. Efficiency (%) : 41.54
- Connector : IPEX/IPX/U.FL
- Antenna width: 52mm
- Antenna length: 90mm
Package Includes:
- 1 x Happymodel 2.4g omnidirectional antenna for ELRS - 90mm
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Specifications:
- Frequency (MHz): 2400.0
- Efficiency (dBi): -0.89
- Gain (dBi): 2.23
- Efficiency (%): 81.46
- Directivity (dB): 5.12
- Peak Gain Position (Theta): 180.00
- Peak Gain Position (Phi): 330.00
- Efficiency ThetaPol (%) : 20.90
- Efficiency PhiPol (%) : 60.56
- Upper Hem. Efficiency (%) : 39.93
- Lower Hem. Efficiency (%) : 41.54
- Connector : IPEX/IPX/U.FL
- Antenna width: 52mm
- Antenna length: 90mm
Package Includes:
- 1 x Happymodel 2.4g omnidirectional antenna for ELRS - 90mm
