ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0802 brushless motor, that would be the lightest brushless motors all over the world. We’re sure this would be a good option for you in the Tiny Whoop Season.

 Update Log:

• Updated to ICM42688P gyro.
• Mobula6 ELRS 2.4Ghz version comes with Updated ELRSF4 2G4 V3.1 flight controller since 25th Feb
• V3.1 Version flight controller Updated
• MPU6000 changed to ICM20689 because of MPU6000 discontinued
• Onboard VTX changed to OPENVTX support 0mw~400mw
• Pre-install Betaflight firmware which support ELRS V2.0 TX firmware
• Now with Caddx Ant, no longer with Runcam 3.





Description:

• Brand: Happymodel
• Item Name: Mobula6 ELRS 2.4GHz 1S 65mm Brushless whoop drone BNF version
• Wheelbase: 65mm
• Size: 80mm*80mm*37mm

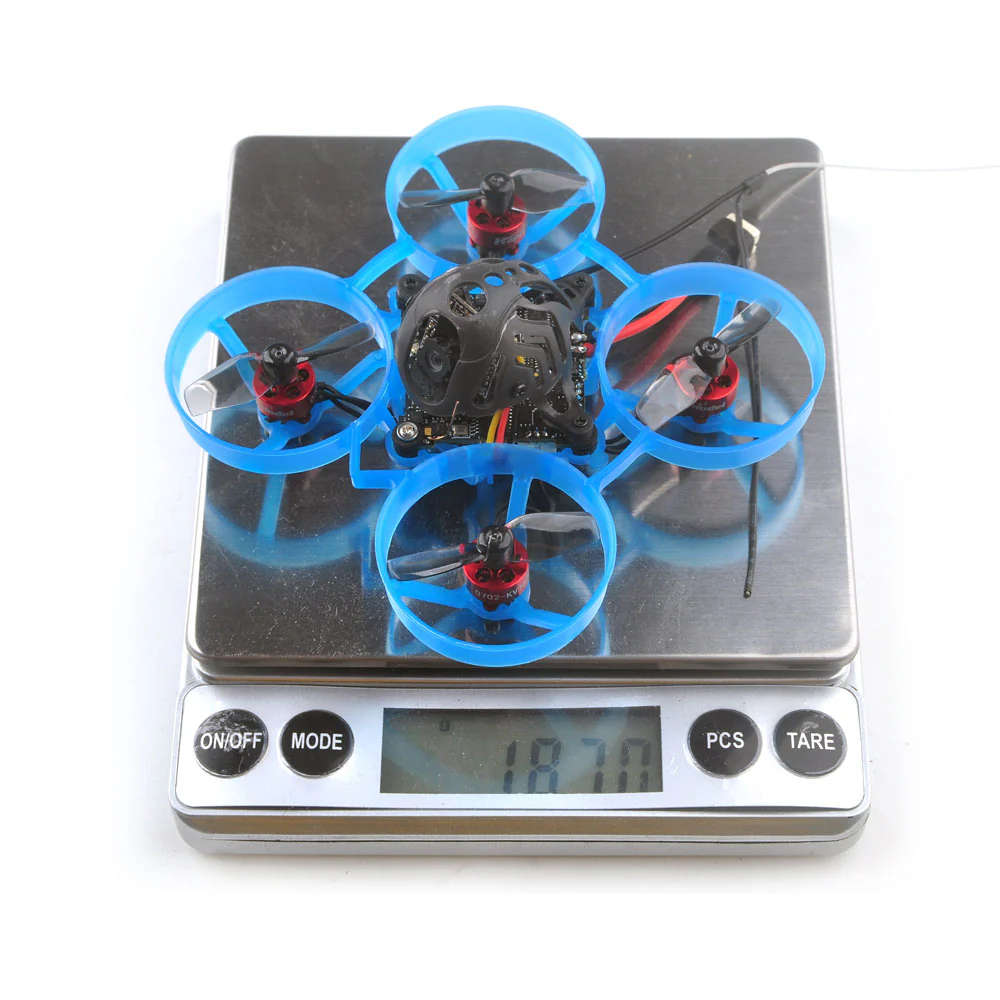

• Weight: 18.7g
• Voltage:1S

 Specifications:

Motor

• KV: Race = KV25000, Standard = 19000KV
• Configu-ration:9N12P
• Stator Diamter:7mm
• Stator Length:2mm
• Shaft Diameter:Φ1mm
• Motor Dimension(Dia.*Len):Φ9.5mm*14mm
• Weight(g):1.46g
• No.of Cells(Lipo):1S only

Propellers:

• HQprop31mmx2
• Center Thickness:5mm
• Prop Disk Diameter:31mm
• Center Hole Inner diameter:1.0mm
• Weight:0.2g

Flight controller:

• ELRS F4 2G4 flight controller V3.1 built-in SPI expresslrs 2.4G receiver
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: ICM42688P
• Board size: 28.5 * 28.5MM
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G VTX
• Built-in ExpressLRS 2.4G receiver
• Built-in 5V 1A BEC
• Built-in voltage detection

Onboard 4in1 ESC:

• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_7.HEX
• Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver:

• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
• RF Frequency: 2.4GHzAntenna : SMD antenna
• Telemetry output Power: <12dBmReceiver protocol:  SPI ExpressLRS
• Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible

Onboard 5.8g VTX:

• Output power: 25mw~200mw
• Frequency: 37CH
• Input voltage: 3.3V 5.5V
• Current consumption: 300mA(type)
• Frequency: 5.8GHz 5bands 37 channels
• With Race band Smartaudio ready

Lipo Battery:

• Capacity:300mAh
• Voltage:3.8v
• Continuous Discharge Rate: 30C
• Size: 57mmx12mmx7mm
• Weight: 8gConnector: PH2.0

Package Includes:

• 1 x Happymodel Mobula6 ELRS 2.4GHz 1s 65mm Brushless FPV Brushless Whoop Drone - Chosen Version
• 1 x HQPROP 31mm bi-blade propellers(4cw+4ccw)
• 1 x 1S Lipo/LIHV USB Charger
• 1 x Propeller disassemble tool
